Registration tolerance between each unit
±0.1mm
Die-cutting tooling
6-8 million revolutions
Sheet Collection
Independent for each raw
Max production speed
200m/min

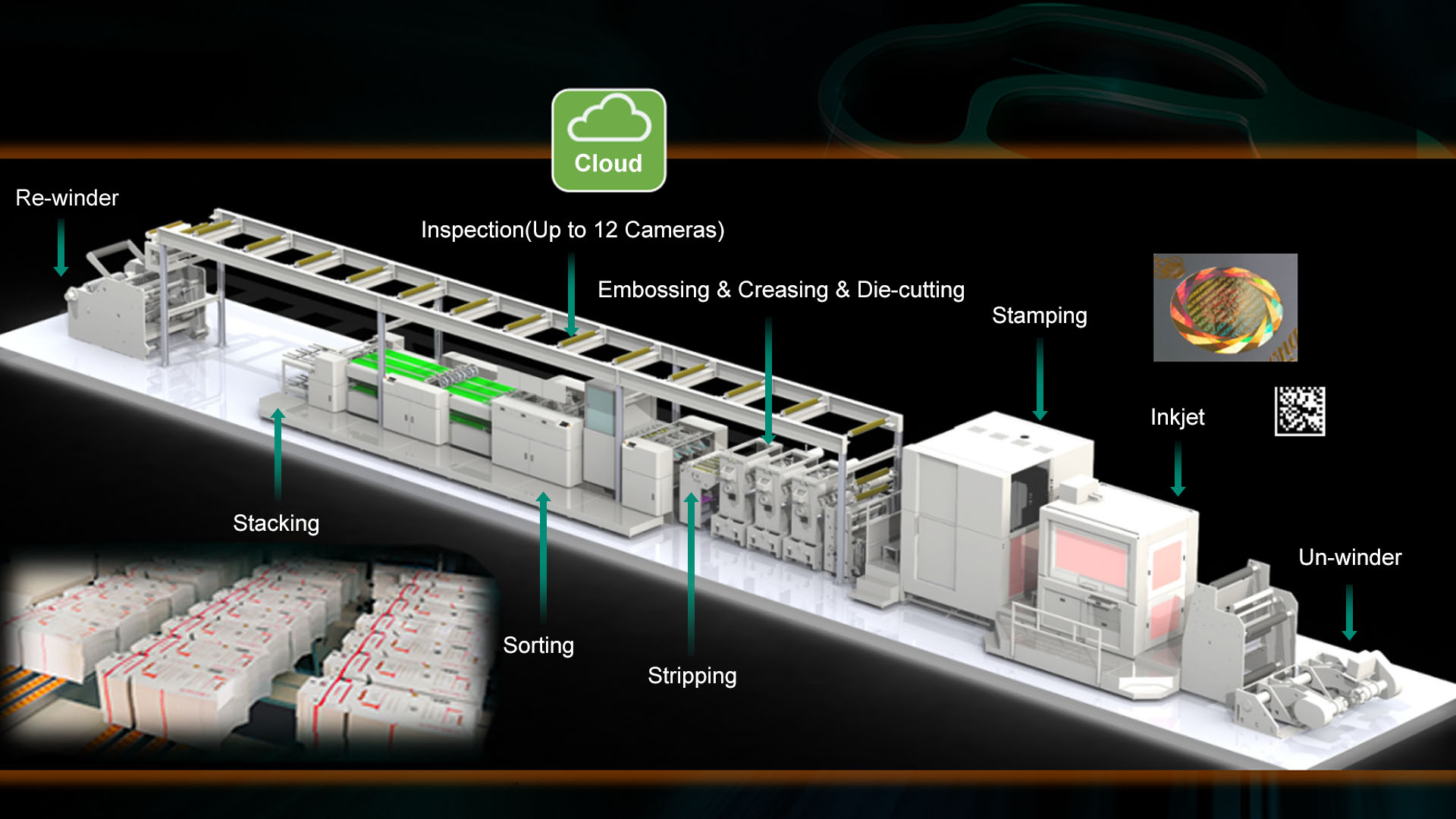

M Pack 850 Roll-fed finishing line combines finishing technology which covers embossing, creasing, die cutting, stripping, inspection, sorting, stacking and other possible finishing processes all in line and then final products are completed perfectly in one step.
|
Items |
Specifications |
|
Max substrate width |
850 mm |
|
Max weight of rolls |
1400kg |
|
Core of the rolls |
3 inch & 6 inch &12 inch |
|
Items |
Specifications |
|
Max roll diameter |
1600mm |
|
Max tension |
600 N |
|
Substrate range |
35g- 450g |
|
Items |
Specifications |
|
Max substrate width |
850 mm |
|
Max roll diameter |
1600mm |
|
Max weight of rolls |
1400kg |
|
Max tension |
600 N |
|
Core of the rolls |
3 inch & 6 inch &12 inch |
|
Substrate range |
35g- 450g |
|
Items |
Specifications |
|
Repeat size |
457mm - 915mm |
|
Min foil width |
10 mm |
|
Saving stamping tolerance |
±0.1 mm |
|
Max hologram streams |
6 |
|
Items |
Specifications |
|
Max running speed |
22 cycles / second |
|
Hologram inserting tolerance |
±0.1 mm |
|
Min foil saving gap |
1mm |
|
Max foil streams |
15 |
|
Items |
Specifications |
|
Repeat size |
457mm - 915mm |
|
Max running speed |
22 cycles / second |
|
Min foil width |
10 mm |
|
Hologram inserting tolerance |
±0.1 mm |
|
Saving stamping tolerance |
±0.1 mm |
|
Min foil saving gap |
1mm |
|
Max hologram streams |
6 |
|
Max foil streams |
15 |
|
Items |
Specifications |
|
Max substrate width |
850 mm |
|
Max production speed |
200m/min |
|
Repeat size |
754mm - 1068mm |
|
Items |
Specifications |
|
Substrate range |
150~450g |
|
Max tolerance |
±0.1mm |
|
Items |
Specifications |
|
Max substrate width |
850 mm |
|
Substrate range |
150~450g |
|
Max production speed |
200m/min |
|
Max tolerance |
±0.1mm |
|
Repeat size |
754mm - 1068mm |
